TARDIGRADE KEY

Murrayon

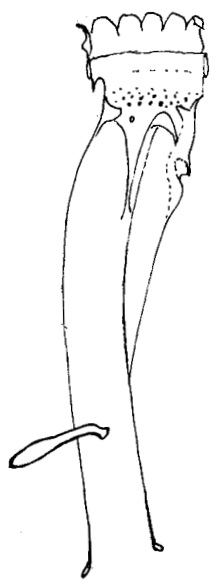

Biserov, B. I. (1988) Пресноводные Тихоходки Некоторых Районов СССР. Зоологический Журнал, 67(12): 1798-1811.

Class: Eutardigrada

Order: Parachela

Superfamily: Macrobiotoidea

Family: Murrayidae

Click taxa for descriptions

Genus description from Bertolani & Pilato 1988: Macrobiotidae con unghie di tipo pullari, ossia con la porzione basale a laminetta trapezoidale e i due rami divergenti fin dalla base (unghie a V) e formanti un angolo acuto; le basi delle due unghie di ciascuna zampa sono indipendenti, ossia non collegate fra loro da alcun ispessimento cuticolare. Nelle specie finora note sono presenti lunule. Tubo boccale rigido con sbarretta di rinforzo ventrale a margine inciso così da apparire provvista di un vistoso « uncino ». Lamelle periboccali presenti. Bulbo faringeo provvisto di apofisi e di placoidi. Nelle specie finora note le uova hanno guscio ornamentato.”

Translated with help of Google Translate: Macrobiotidae with pullari-type claws, i.e. with the basal portion in the form of a trapezoidal lamina and the two branches diverging from the base (V-shaped claws) and forming an acute angle; the bases of the two claws of each leg are independent, i.e. not connected to each other by any cuticular thickening. In the species known so far, lunulae are present. Rigid buccopharyngeal tube with ventral lamina with incised margin so as to appear to have a conspicuous “hook”. Peri-oral lamellae present. Pharyngeal bulb provided with apophyses and placoids. In the species known so far, the eggs have an ornamented shell.

Genus description from Guidetti et al. 2022: “Claws of Murrayon type (=pullari type): basal section of the double claw appears as a trapezoidal lamina (in lateral view); primary and secondary branches similar in length and joined to each other for a very short portion, forming an acute angle (V-shaped); lunules present. Two macroplacoids in the pharynx. Epicuticular pillar-like structure not visible with light microscopy.”

Species key: Guidetti R, Giovannini I, Del Papa V, Ekrem T, Nelson DR, Rebecchi L, Cesari M. 2022. Phylogeny of the asexual lineage Murrayidae (Macrobiotoidea, Eutardigrada) with the description of Paramurrayon gen. nov. and Paramurrayon meieri sp. nov. Invertebrate Systematics. 36(12): 1099-1117.

Bertolani, R. & Pilato, G. (1988) Struttura delle unghie nei Macrobiotidae e descrizione di Murrayon n. gen. (Eutardigrada). Animalia. 15, 17-24.
Bertolani, R. & Pilato, G. (1988) Struttura delle unghie nei Macrobiotidae e descrizione di Murrayon n. gen. (Eutardigrada). Animalia. 15, 17-24.

Citations:

Bertolani, R. & Pilato, G. (1988) Struttura delle unghie nei Macrobiotidae e descrizione di Murrayon n. gen. (Eutardigrada). Animalia. 15, 17-24.

Guidetti, R., Giovannini, I., Del Papa, V., Ekrem, T., Nelson, D.R., Rebecchi, L. & Cesari, M. (2022) Phylogeny of the asexual lineage Murrayidae (Macrobiotoidea, Eutardigrada) with the description of Paramurrayon gen. nov. and Paramurrayon meieri sp. nov. Invertebrate Systematics, 36(12), 1099–1117.
